Description
• Simultaneous Multi-Frequency
• Waterproof Design
• Sleek and Lightweight
• High-Speed Wireless Audio
• 8 Custom Search Profiles
• Fast and Accurate Target ID
• Advanced Settings
• Gold Detecting Mode

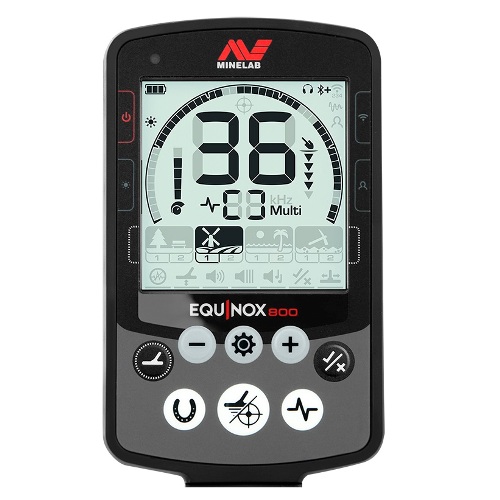

The clear LCD features large Target ID numbers so you can see your target ID at a glance. All of the information you need when detecting is right there in front of you.
Detect Modes and operating frequency can be instantly changed at the push of a button for a dynamic and uninterrupted detecting experience.
Using the EQUINOX 800 user interface, you can:
• Change the Detect Mode, Frequency and Sensitivity on the go.
• Create your own notch discrimination patterns to ignore unwanted targets.
• Activate All-Metal mode to temporarily disable the current discrimination pattern.
• Activate Pinpoint mode to zero-in on a promising target so that you know exactly where to dig.
• Adjust an array of essential and advanced detecting functions including Noise Cancel, Ground Balance, Volume Adjust, Threshold Level, Target Tone, Accept / Reject and Recovery Speed.
• Customise Advanced Settings to change the way detections are heard, by selecting the number, pitch, and volume of your detection signals.
• View the status of your battery and wireless audio device connections.
Specifications:
Detect Modes: Park | Beach | Field | Gold
Custom Search Profiles: 8 (2 per Detect Mode)
User Profile Button: Yes
Operating Frequencies (kHz): Multi, 5, 10, 15, 20, 40
Noise Cancel: Auto | Manual (-9 to 9)
Ground Balance: Auto | Manual
Sensitivity: 1–25
Target Volume: 0–25
Threshold Level: 0–25
Threshold Pitch: 0–25
Target Identification: 50 segment notch discrimination | Ferrous: -9 – 0 | Non-ferrous: 1 – 40
Target Tones: 1, 2, 5, 50
Tone Break: Ferrous | Non-ferrous
Tone Pitch: Ferrous | Non-ferrous
Tone Volume: Ferrous | Non-ferrous
Depth Indicator: 5 levels
Length: 1440 mm (56.7″)
Weight: 1.34 kg (2.96 lbs)
Standard Coil: 11-inch Double-D Smart coil with skidplate (waterproof to 3m/10′)
Audio Output: • In-built loudspeaker • 3.5mm (1/8″) headphones (included) • Bluetooth compatible • WM 08 Wi-Stream compatible
Headphones (included): Bluetooth and aptX™ Low Latency headphones (non waterproof)
WM 08 (included): Yes
Display: Monochrome LCD with backlight
LCD Backlight: Low | Medium | High | Off
Battery: In-built rechargeable Lithium-ion battery
Battery Runtime: Approx. 12 hours
Waterproof: Waterproof to 3m/10-feet
Key Technologies: Multi-IQ | 5F×8 | Wi-Stream | Bluetooth | aptX™ Low Latency
Other Accessories: USB Charging cable (1.5A), Multi Language Screen protectors
Software Upgradeable: Yes, via USB connection (Windows and OSX)
Warranty: 3 years control box and coil
Simon –
VLF detectors don’t come better than the Equinox, great for a variety of tasks, the gold modes work well on small gold equaling that of other dedicated gold detecting high frequency VLF’s.
Very versatile unit under a variety of conditions, a true multi purpose machine.
