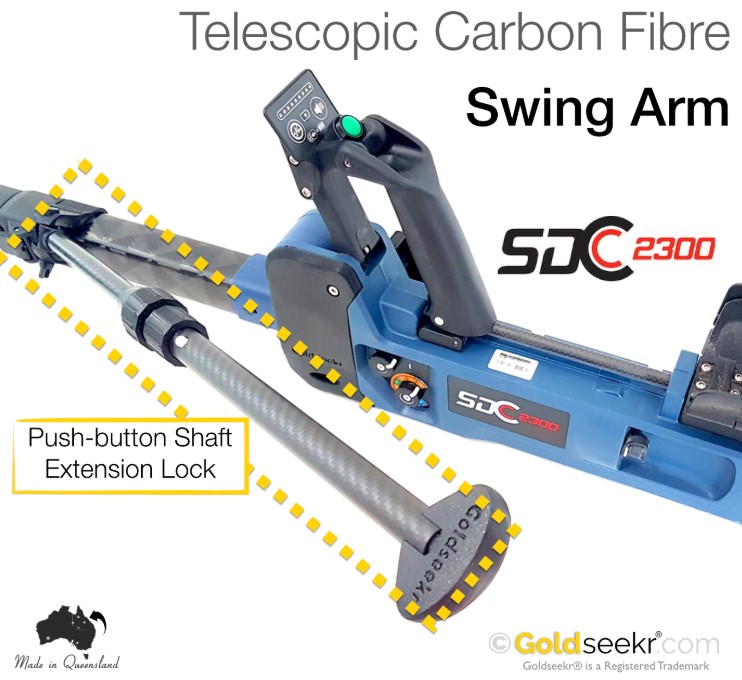

Compact Telescopic Swing Arm – for Minelab SDC2300

$113.04

+ GST for NZ

3 in stock

Description

Moving with your SDC2300 and swing arm is now easier than ever!

Benefits:

• Control arm can remain attached when folding the SDC2300

• Change handle profile to your preferred grip at any time

• Vehicle loading made quick and easy

• More room to operate in tight areas

• Left or Right-handed operation

Features:

• Tough, UV hardy copolyamide Nylon 3D printed fittings with custom infill

• Left or Right-handed mounting

• Rotatable handle position (flat side or curved side to palm)

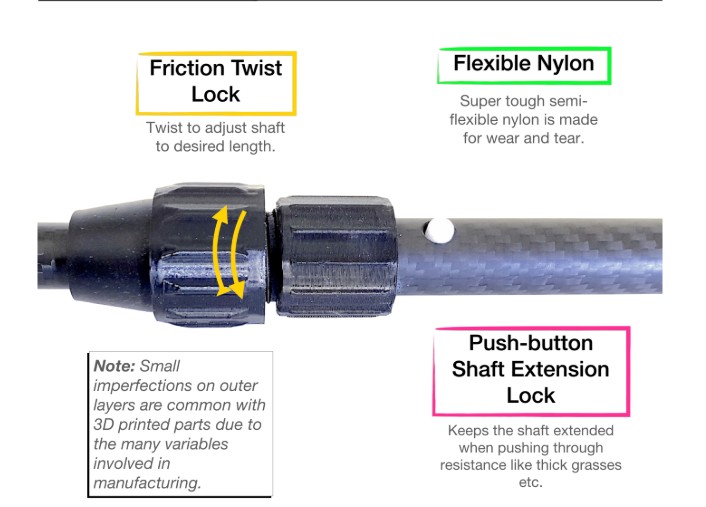

• Screw-locking telescopic mechanism

• Super light – weighs only 125g

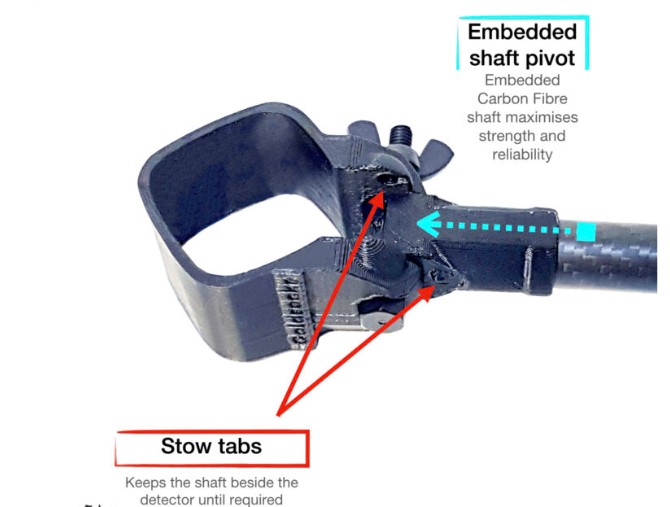

• Shaft position lock



Installing the SDC2300 Telescopic Easy-Swing Control Arm



INSTRUCTIONS
:

  1. Remove the bolt an wing nut.
  2. Separate the handle from the shaft sleeve.
  3. Mounting:
    Right-handed operator. Wrap the shaft sleeve around the lower end of the upper shaft- tapers pointing toward coil.
    Left-handed operator. Wrap the shaft sleeve around the lower end of the upper shaft- tapers point toward operator.
  4. Fit handle mount into Shaft sleeve
  5. Replace bolt and tighten wing nut to suit.

Additional information

Weight 1 kg
